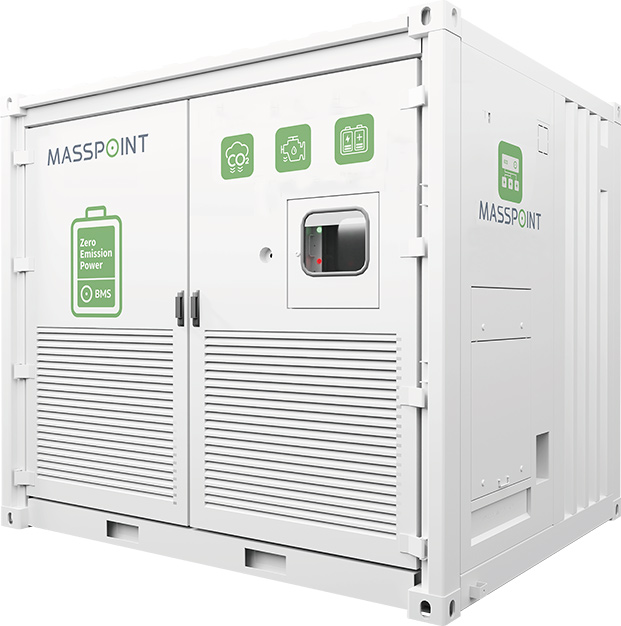

Battery Energy Storage System

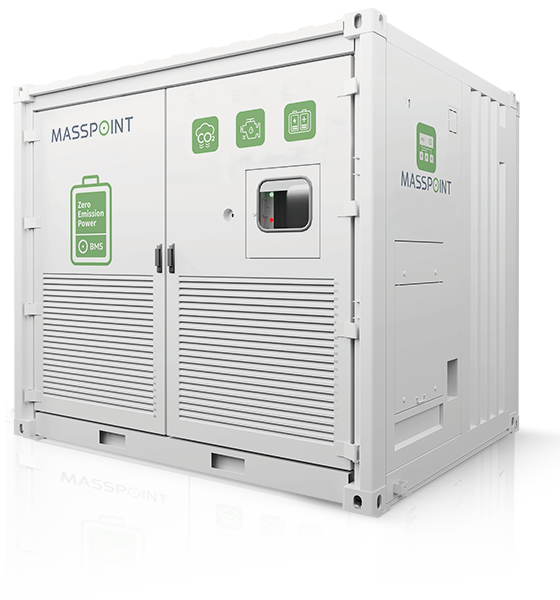

Masspoint Battery Energy Storage System (BESS) can work with generator (or grid) in series or parallel mode to handle temporary-power applications like tower cranes, large pumps, hoists, drilling rigs, stone crusher, etc.

In series, BESS powers loads independently after charged by generator (or grid), achieving zero emissions and silent operation.
In parallel, BESS and generator (or grid) share the load, storing excess energy and responding to demand spikes.

This hybrid system enhances stability, reduces costs, on-site carbon emissions and noise, ideal for remote or unreliable grid locations.

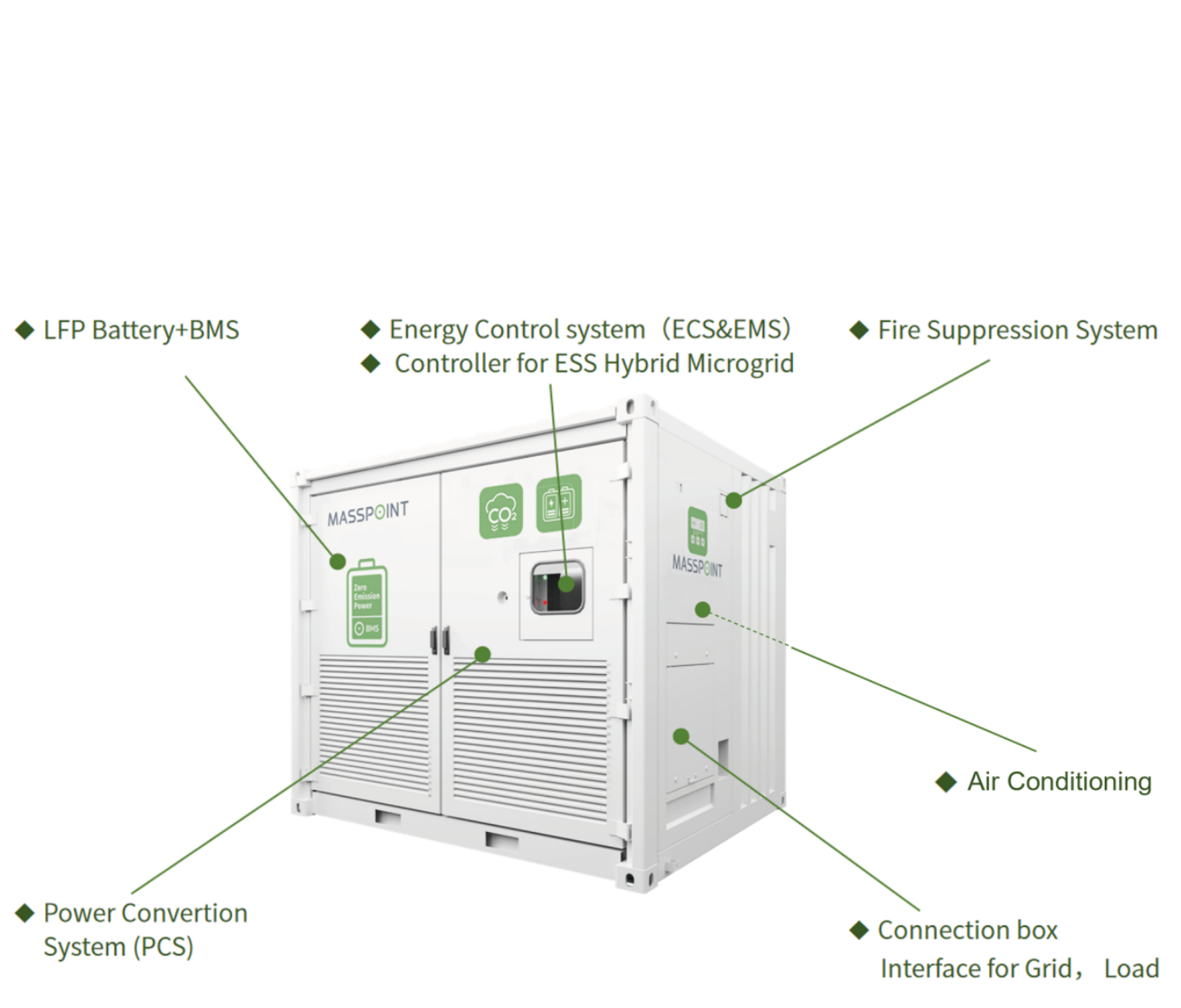

  • LFP Battery+BMS
    Energy Control System (ECS&EMS)
    Controller for ESS Hybrid Micro-Grid
    Fire Suppression System
    Power Convertion
    System (PCS)
    Air Conditioning
    Connection Box
    Interface for Grid, Load
Product features
  • Dual mode standard
    Support parallel discharge mode
    and simultaneous charge-discharge
    mode to achieve the most efficient
    system
  • Direct control of DG
    The internal integrated energy
    control system (ECS) can
    communicate with various brands
    gensets’ controllers such as ComAp,
    Deep Sea, DEIF, make the DG run
    stably at the highest efficiency point
  • Plug & Play
    Shipped as a whole, all components
    100% preinstalled and tested. Literally
    turn-key system, reduce on-site labor
    costs

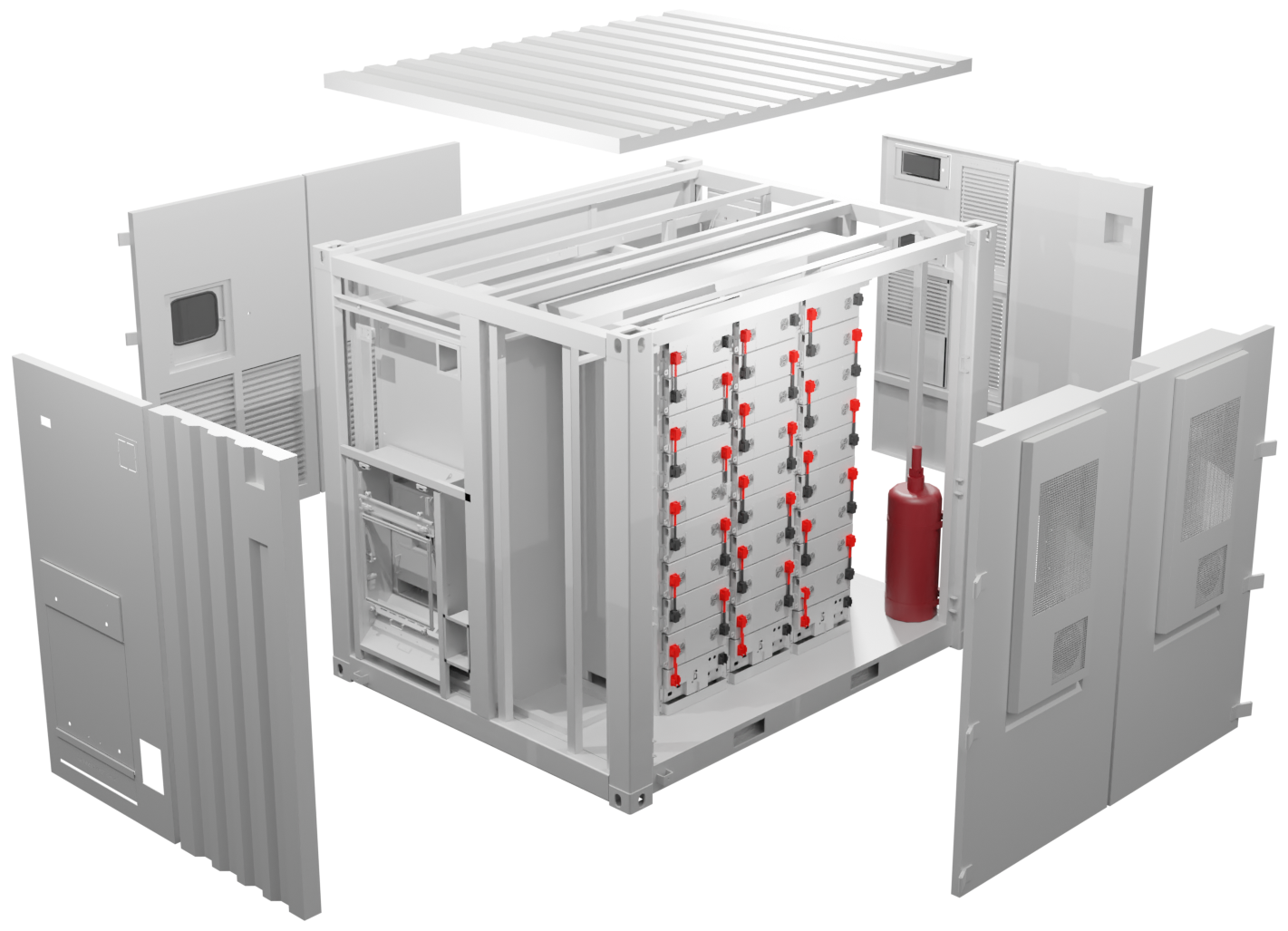

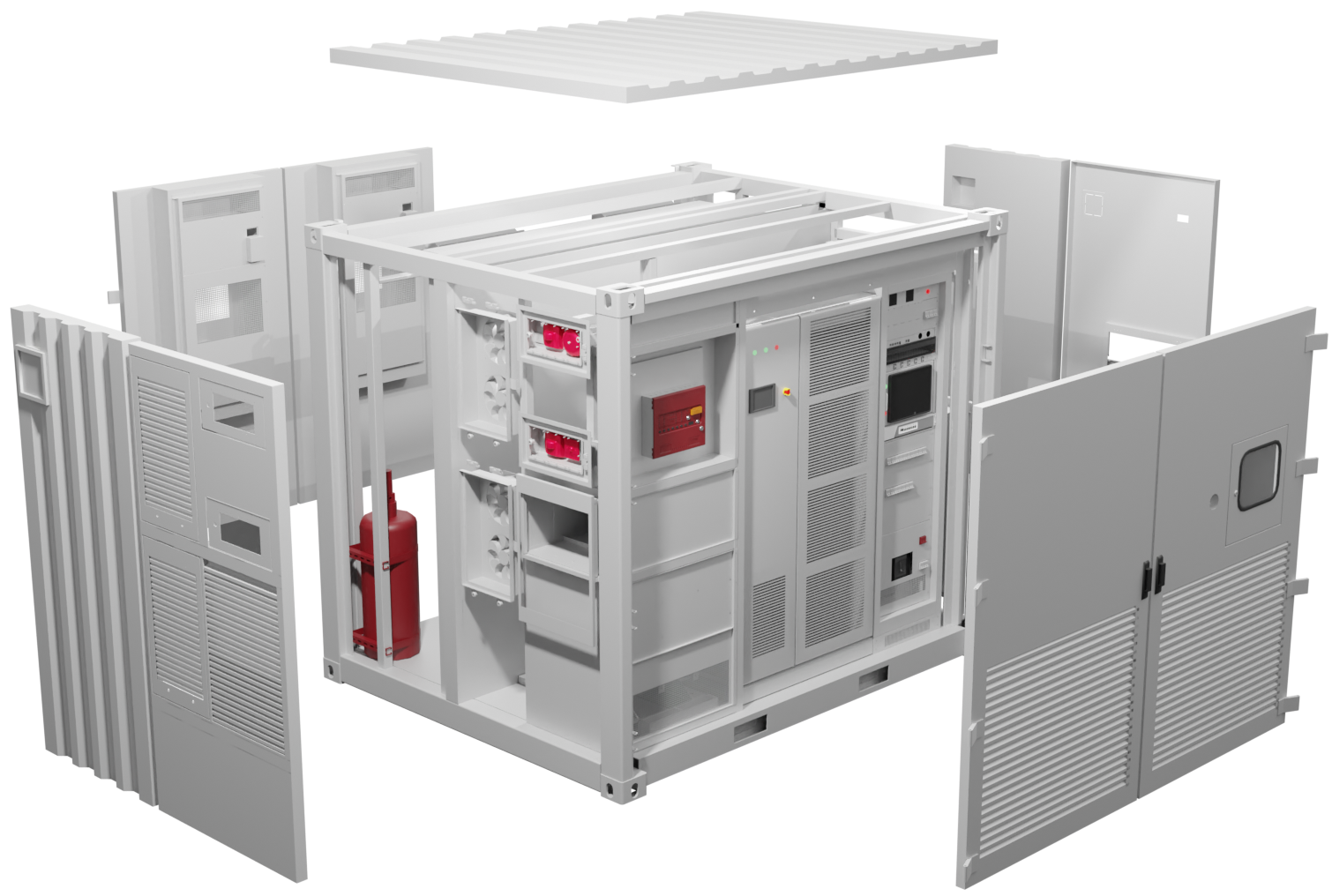

  • All-in-one integration
    Integrated with battery system, PCS,
    EMS, air conditioner, fire suppression
    system, distribution box

Alpha-250-215
Alpha-400-430
  • Battery Type LFP
    Battery Capacity 215kWh
  • Maximum Power Output 250KW
    System Dimension 2991*2438*2591mm
  • Wiring Method 3P+N+PE
    Ingress Protection IP54
    • Discover
    System Model Alpha-250-215    Alpha-400-430
    Battery Parameter
    Battery Capacity 215kWh 430kWh
    Battery Type LFP
    Output
    Power 250kW 400kW
    Diesel Genset /Electric Supply Input Parameter
    Wiring Method 3+N+PE/3+PE,380/400V
    Rated Frequency 50/60Hz
    Maximum Input Current 455A 729A
    System Output Parameter
    Wiring Method 3+N+PE/3+PE
    Rated Frequency 50/60Hz
    Rated Power 250kW 400kW
    Basic Parameter
    System Dimension 2991*2438*2591mm 2991*2438*2591mm
    Weight ＜8t ＜10t
    Cooling Method Forced air-cooling
    Working Temperature -20~50℃
    Altitude 2000m
    Ingress Protection IP54
    Certificates IEC62619、UN38.3、IEC62109
    System Model Alpha-250-215-EX
    Battery Parameter
    Battery Capacity 215~250kWh
    Battery Type LFP
    Output
    Array Power 250kW
    Diesel Genset /Electric Supply Input Parameter
    Wiring Method 3+N+PE/3+PE,380/400V
    Rated Frequency 50/60Hz
    Maximum Input Current 455A
    System Output Parameter
    Wiring Method 3+N+PE/3+PE
    Rated Frequency 50/60Hz
    Rated Power 250kW
    Basic Parameter
    System Dimension 2991*2438*2591
    Weight ＜8t
    Cooling Method Forced air-cooling
    Working Temperature -20~50℃
    Altitude 2000m
    Ingress Protection IP54
    Certificates IEC62619、UN38.3、IEC62109
  • Battery Type LFP
    Battery Capacity 430kWh
  • Maximum Power Output 400kW
    System Dimension 2991*2438*2591mm
  • Wiring Method 3P+N+PE
    Ingress Protection IP54
    • Discover
    System Model Alpha-250-215 Alpha-400-430
    Battery Parameter
    Battery Capacity 215~250kWh 400~430KWh
    Battery Type LFP
    Output
    Array Power 250kW 400kW
    Diesel Genset /Electric Supply Input Parameter
    Wiring Method 3+N+PE/3+PE,380/400V
    Rated Frequency 50/60Hz
    Maximum Input Current 455A 729A
    System Output Parameter
    Wiring Method 3+N+PE/3+PE
    Rated Frequency 50/60Hz
    Rated Power 250kW 400kW
    Basic Parameter
    System Dimension 2991*2438*2591 2991*2438*2591mm
    Weight ＜8t ＜10t
    Cooling Method Forced air-cooling
    Working Temperature -20~50℃
    Altitude 2000m
    Ingress Protection IP54
    Certificates IEC62619、UN38.3、IEC62109
    System Model Alpha-400-430-EX
    Battery Capacity 400~430kWh
    Battery Type LFP
    Output
    Array Power 400kW
    Diesel Genset /Electric Supply Input Parameter Diesel Genset /Electric Supply Input Parameter
    Wiring Method 3+N+PE/3+PE,380/400V
    Rated Frequency 50/60Hz
    Maximum Input Current 729A
    System Output Parameter System Output Parameter
    Wiring Method 3+N+PE/3+PE
    Rated Frequency 50/60Hz
    Rated Power 400kW
    Basic Parameter Basic Parameter
    System Dimension 2991*2438*2591
    Weight ＜10t
    Cooling Method Forced air-cooling
    Working Temperature 20~50℃
    Altitude 2000m
    Ingress Protection IP54
    Certificates IEC62619、UN38.3、IEC62109
Power the world's construction
save fuel, reduce emission, less noise and lower cost
Application Scenarios

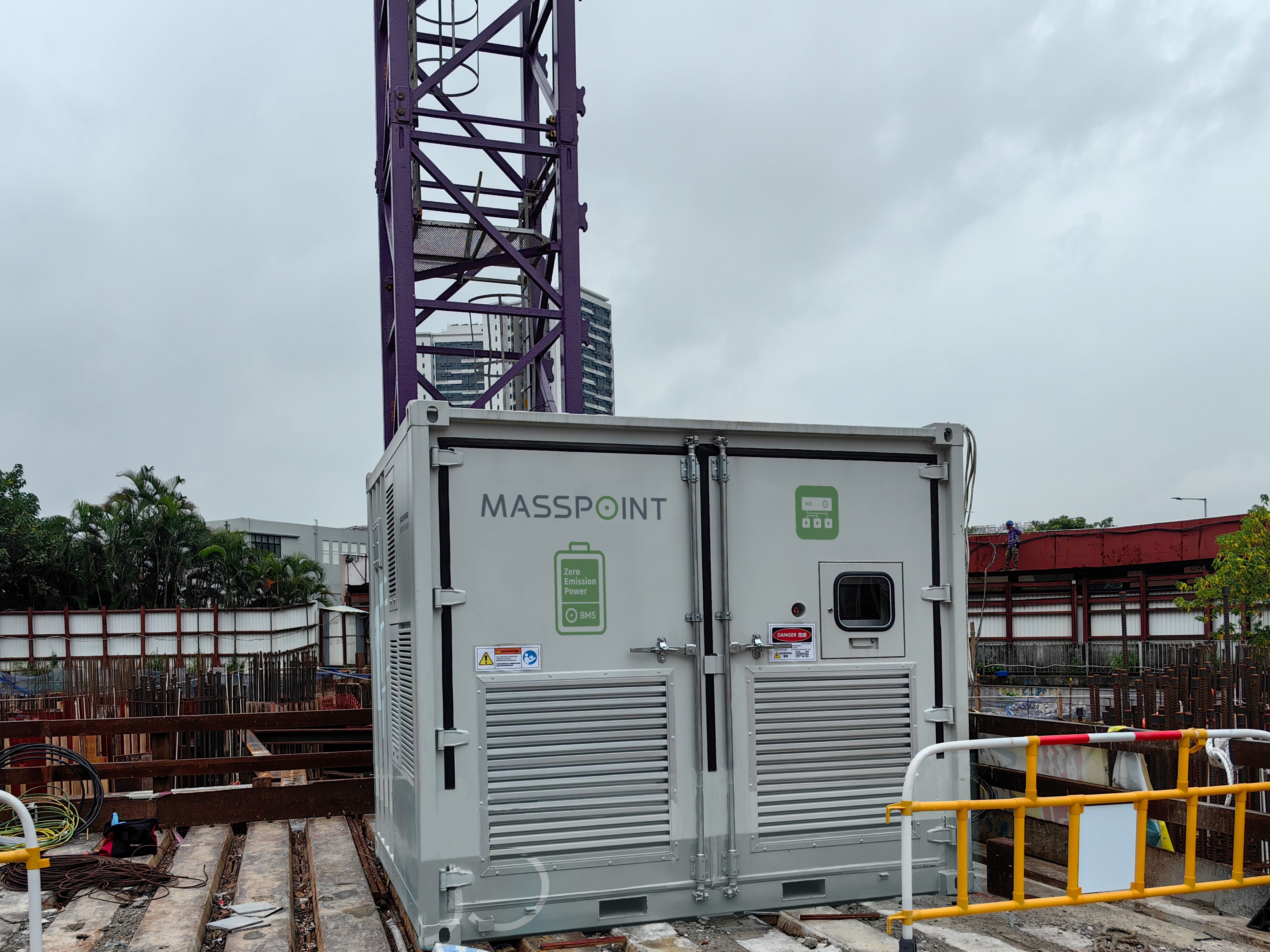

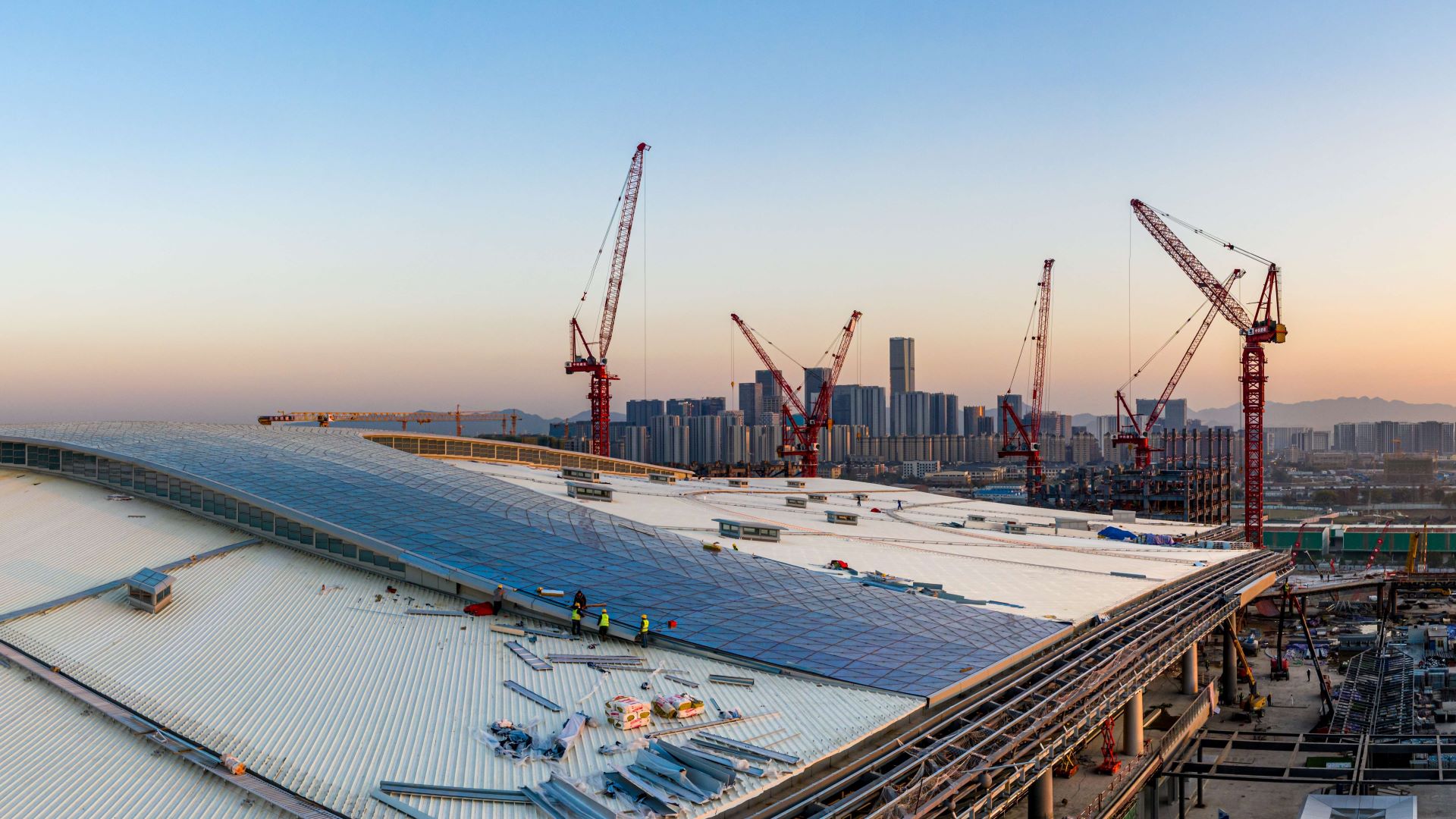

  • Construction Sites

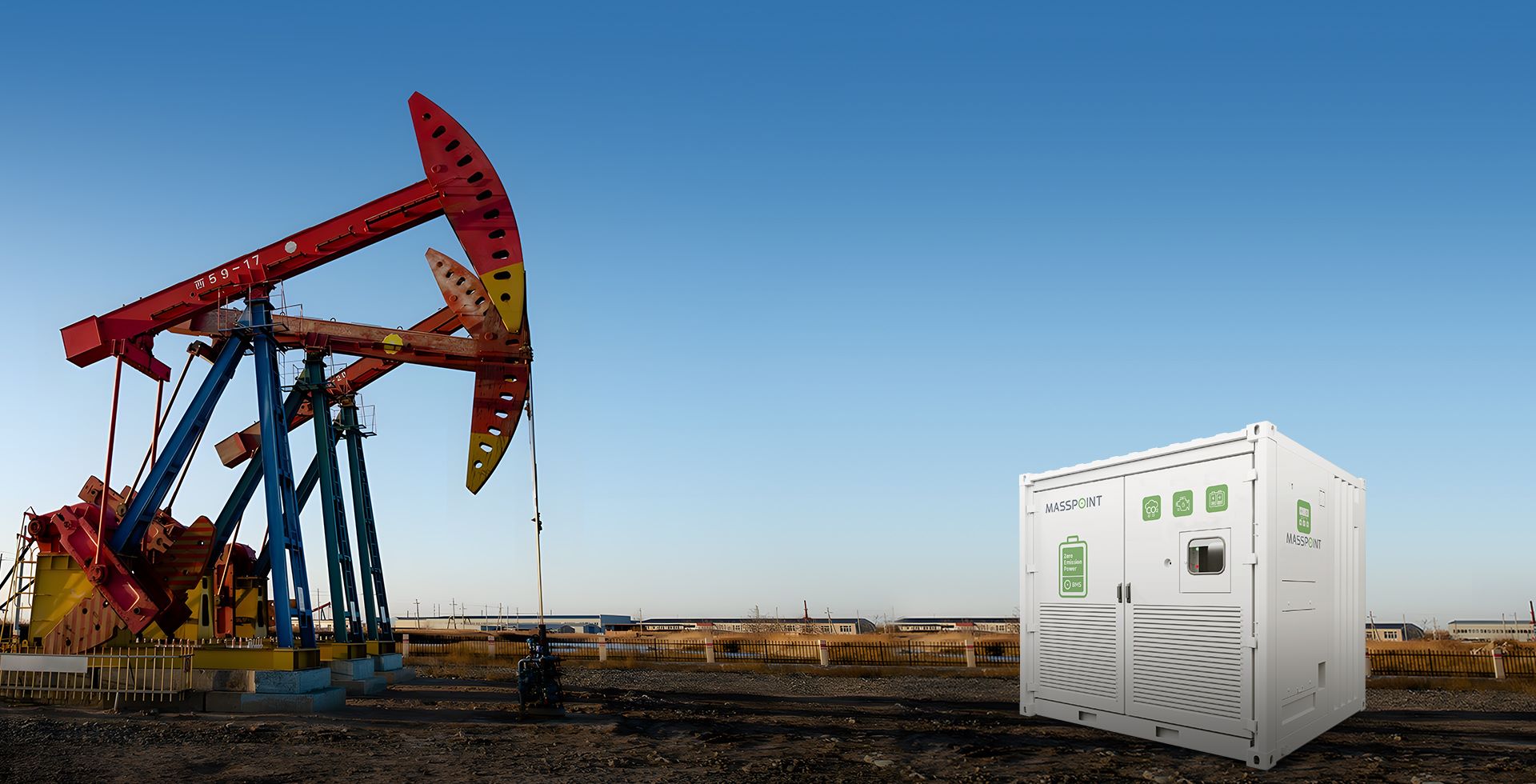

  • Petroleum Refining Industry

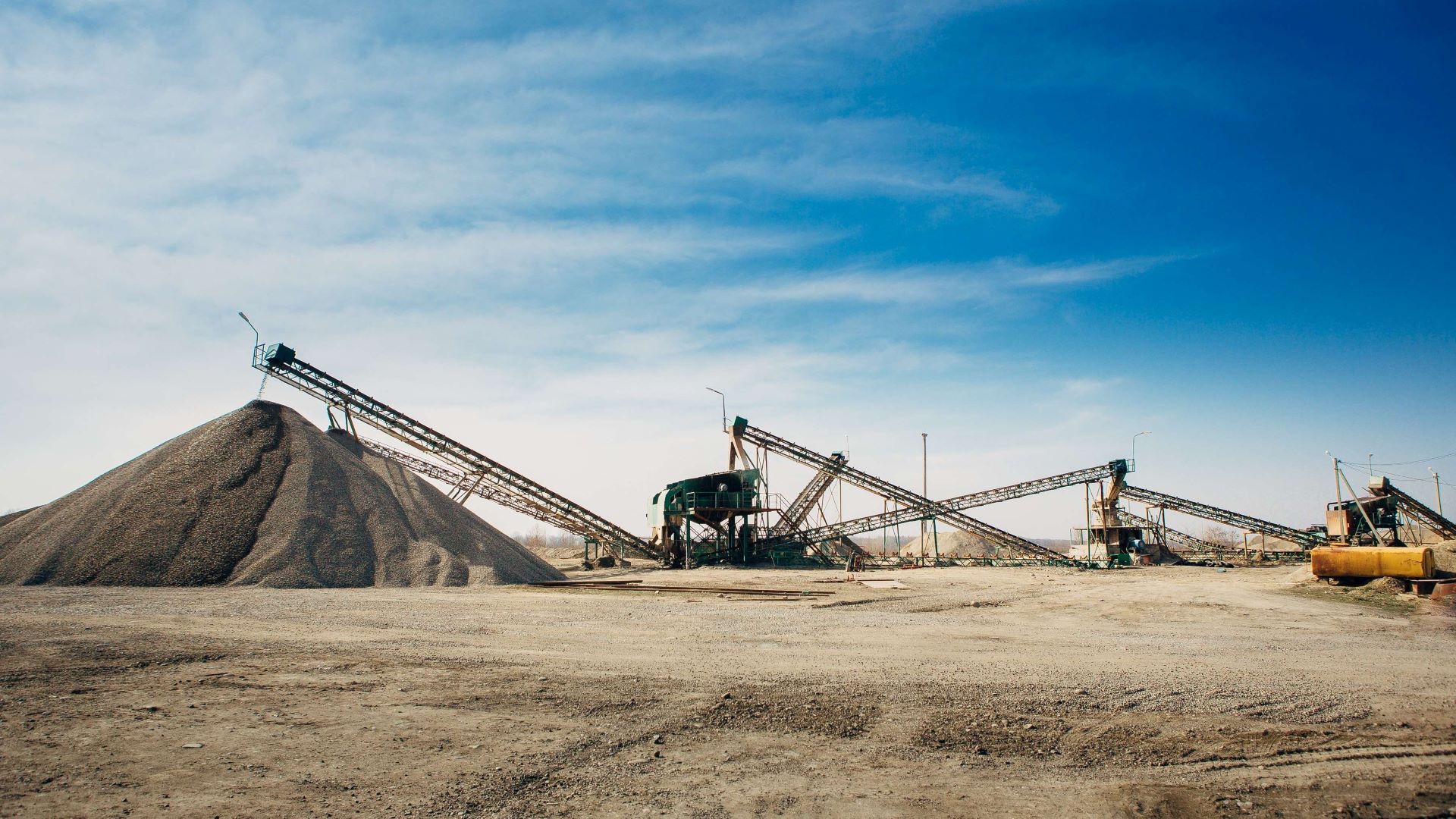

  • Stone Crushing Plant
Building up intelligent and green
energy systems.
