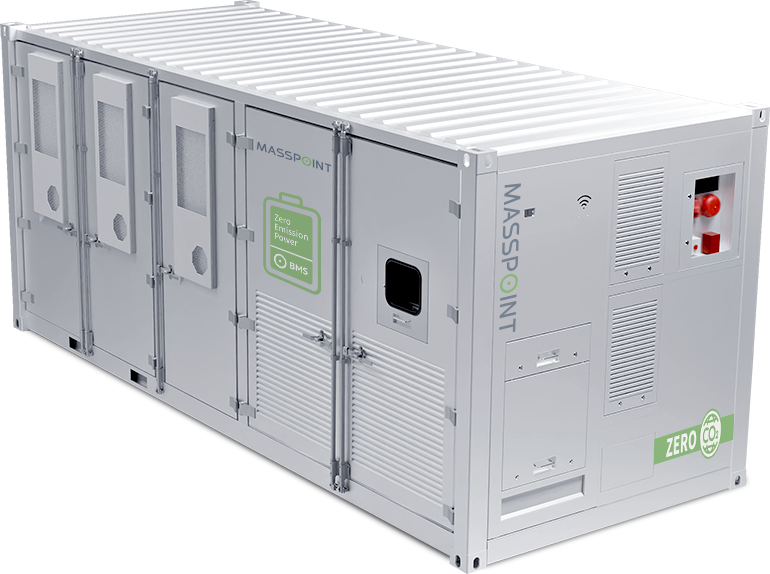

Micro-grid Energy Storage System
Masspoint micro-grid energy storage system combines photovoltaic (PV) solar panels, diesel generators (DG) or Grid, and battery energy storage systems (BESS) for a clean and smart energy solution.

PV panels provide renewable energy during daylight, while DG or Grid offer backup power during low solar periods and at night. BESS store excess electricity, enabling efficient energy management and load shifting.

This system ensures continuous power supply, enhances resilience for critical facilities, reduces reliance on fossil fuels, and lowers operational costs. Scalable and adaptable, ideal for off-grid, grid-connected, and hybrid micro-grid applications.

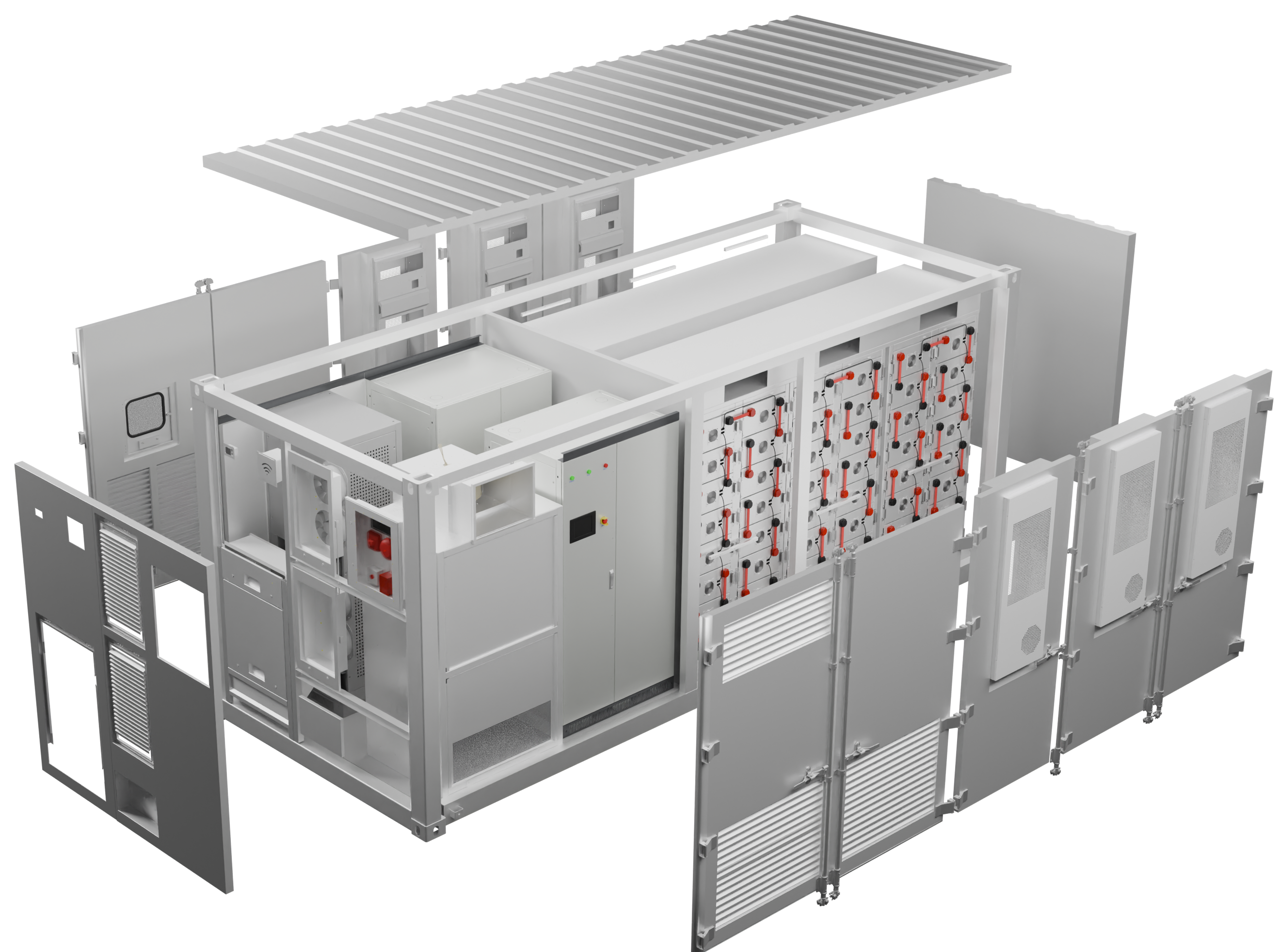

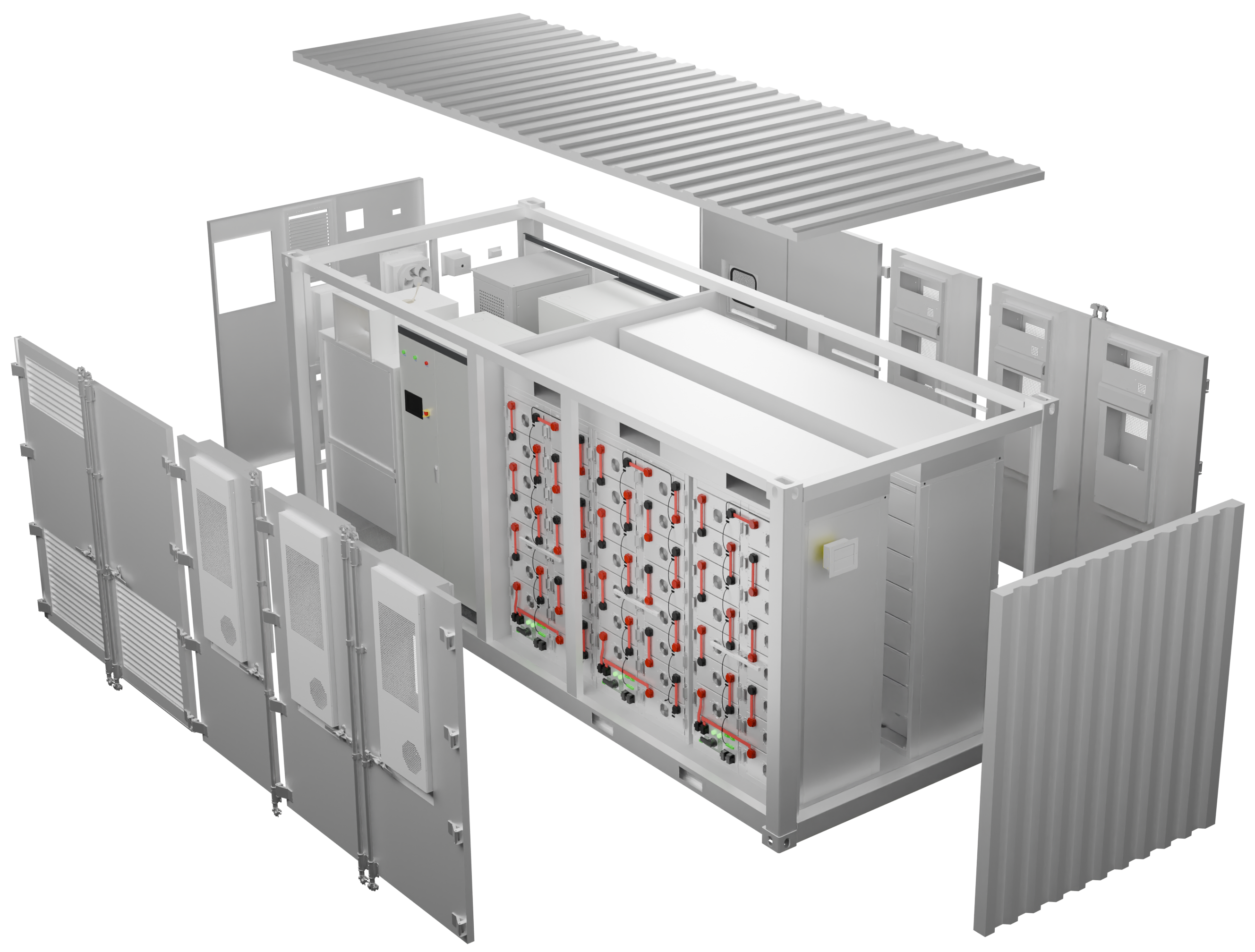

  • LFP Battery+BMS
    Energy Control System (ECS&EMS)
    Controller for PV+ESS+DG Hybrid Micro-Grid
    Fire Suppression System
    Power Converting
    System (PCS)
    DC/DC converter for
    PV connection
    Connecting Box
    Interface for Diesel Genset
    connection, PV input, Load
    Air Conditioning
Product features
  • Flexible
    Energy Capacity from kWh
    to MWh
  • All-in-one integration
    All components 100% pre-installed,
    tested. Literally turn-key system.
  • Safely designed
    Fire suppression system, temperature
    management system, battery
    protection, insulation protection
  • Hybrid
    PV System, Diesel Generator or Grid,
    BESS can be all connected and
    collaborate as one
EMS&ECS
Control unit is the core of our micro grid system, which consists of Energy Management System (EMS) and Energy Control System (ECS).
By receiving information from various devices and collecting voltage and current data from PV, grid, loads, generators, and batteries, the system applies intelligent control strategies to different power systems based on their load characteristics and power sources. This ensures excellent system operating performance. The system enables the automatic operation of intelligent control strategies for solar power, diesel generator or grid and battery storage, maximizing PV utilization and reducing electricity costs.
Energy Management/Control System
Masspoint cloud
EMS&ECS
  • PV
  • DG
  • PCS
  • HVAC
  • Meter
  • BMS
  • EV Charge
  • Other

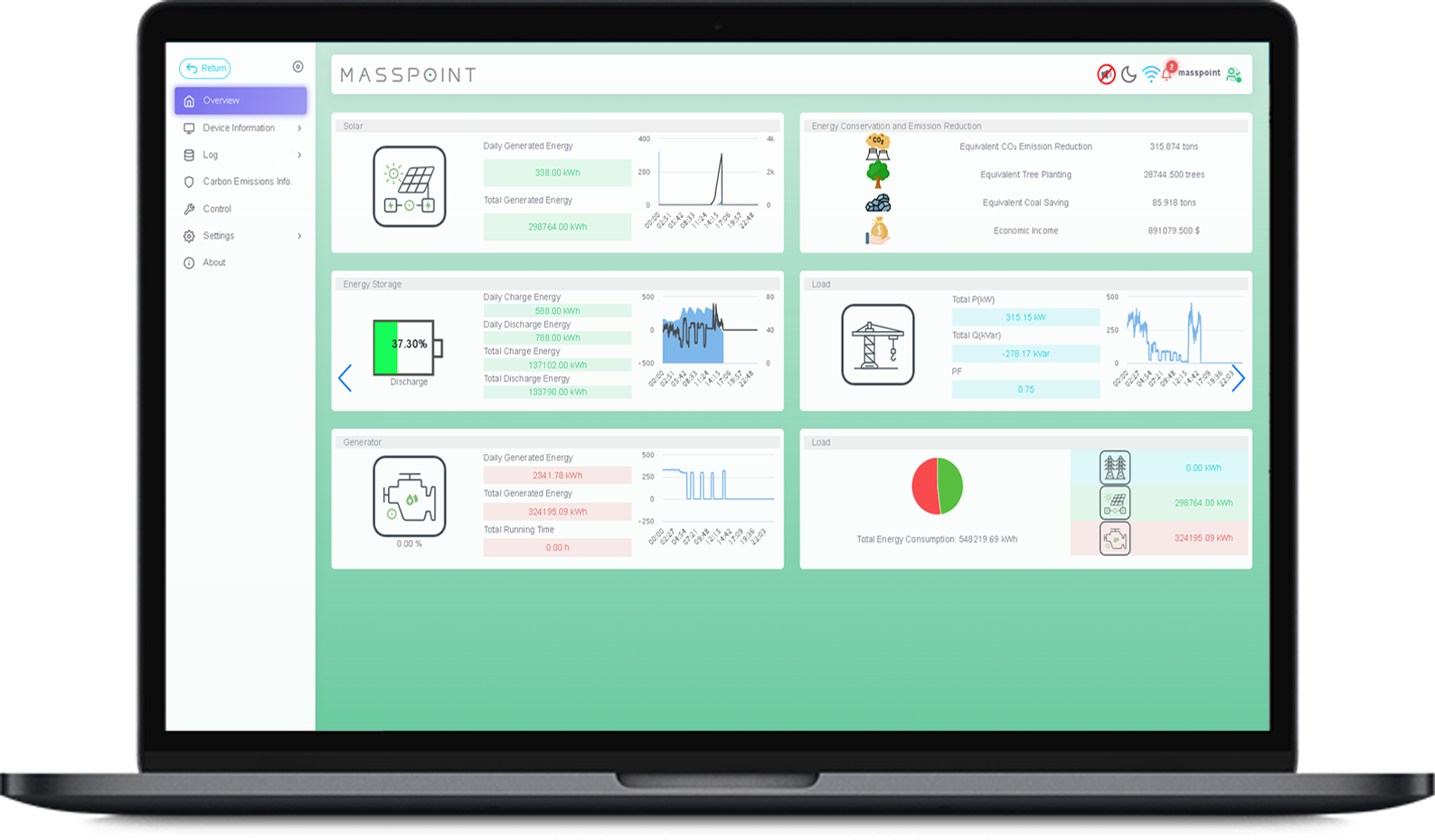

Features of Masspoint ECS
System Status
Data Analysis
Remote Controlling & Maintenance
System Controlling
Load Tracking & Peak Shaving
System Logs
Product parameters

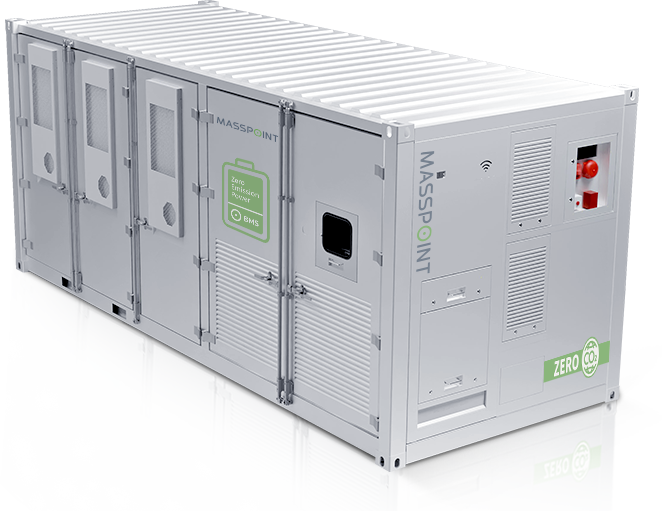

Delta-400-250/430
Delta-800-500/1075
  • Battery Type LFP
    Battery Capacity 215~430kWh
  • Maximum Power Output 250kW
    System Dimension 2991*2438*2591mm
  • Wiring Method 3P+N+PE
    Ingress Protection IP54
    • Discover
    System Model Delta-400-250/430-CE Delta-800-500/1075-CE Delta-1600-1000/2150-CE
    Battery Parameter
    Battery Capacity 215~430kWh 430~1075KWh 1290~2150kWh
    Battery Type LFP
    PV Input Parameter
    PV Array Power 400kW 800kW 1600kW
    PV Connection Method AC Coupling /DC Coupling
    Diesel Genset /Electric Supply Input Parameter
    Wiring Method 3+N+PE/3+PE,380/400/415V
    Rated Frequency 50/60Hz
    Max. Input Current 455A 911A 1823A
    System Output Parameter
    Wiring Method 3+N+PE/3+PE,380/400/415V
    Rated Frequency 50/60Hz
    Rated Power 250kW 500kW 1000kW
    Basic Parameter
    System Dimension 2991*2438*2591 6058*2438*2591mm 12192*2438*2591mm
    Weight ＜8t ＜21t ＜30t
    Cooling Method Forced air-cooling
    Working Temperature -30~50℃
    Altitude 2000m
    Ingress Protection IP54
    Certificates IEC62619、UN38.3、IEC62477、IEC61000
    System Model Delta-400-250/430-CE
    Battery Parameter
    Battery Capacity 215~430kWh
    Battery Type LFP
    PV Input Parameter
    PV Array Power 400kW
    PV Connection Method AC Coupling /DC Coupling
    Diesel Genset /Electric Supply Input Parameter
    Wiring Method 3+N+PE/3+PE,380/400/415V
    Rated Frequency 50/60Hz
    Max. Input Current 455A
    System Output Parameter
    Wiring Method 3+N+PE/3+PE,380/400/415V
    Rated Frequency 50/60Hz
    Rated Power 250kW
    Basic Parameter
    System Dimension 2991*2438*2591
    Weight ＜8t
    Cooling Method Forced air-cooling
    Working Temperature -30~50℃
    Altitude 2000m
    Ingress Protection IP54
    Certificates IEC62619、UN38.3、IEC62477、IEC61000
  • Battery Type LFP
    Battery Capacity 430~1075kWh
  • Maximum Power Output 500kW
    System Dimension 6058*2438*2591mm
  • Wiring Method 3P+N+PE
    Ingress Protection IP54
    • Discover
    System Model Delta-400-250/430-CE Delta-800-500/1075-CE Delta-1600-1000/2150-CE
    Battery Parameter
    Battery Capacity 215~430kWh 430~1075KWh 1290~2150kWh
    Battery Type LFP
    PV Input Parameter
    PV Array Power 400kW 800kW 1600kW
    PV Connection Method AC Coupling /DC Coupling
    Diesel Genset /Electric Supply Input Parameter
    Wiring Method 3+N+PE/3+PE,380/400/415V
    Rated Frequency 50/60Hz
    Max. Input Current 455A 911A 1823A
    System Output Parameter
    Wiring Method 3+N+PE/3+PE,380/400/415V
    Rated Frequency 50/60Hz
    Rated Power 250kW 500kW 1000kW
    Basic Parameter
    System Dimension 2991*2438*2591 6058*2438*2591mm 12192*2438*2591mm
    Weight ＜8t ＜21t ＜30t
    Cooling Method Forced air-cooling
    Working Temperature -30~50℃
    Altitude 2000m
    Ingress Protection IP54
    Certificates IEC62619、UN38.3、IEC61000、IEC62477
    System Model Delta-800-500/1075-CE
    Battery Parameter
    Battery Capacity 430~1075KWh
    Battery Type LFP
    PV Input Parameter
    PV Array Power 800kW
    PV Connection Method AC Coupling /DC Coupling
    Diesel Genset /Electric Supply Input Parameter
    Wiring Method 3+N+PE/3+PE,380/400/415V
    Rated Frequency 50/60Hz
    Max. Input Current 911A
    System Output Parameter
    Wiring Method 3+N+PE/3+PE,380/400/415V
    Rated Frequency 50/60Hz
    Rated Power 500kW
    Basic Parameter
    System Dimension 6058*2438*2591mm
    Weight ＜21t
    Cooling Method Forced air-cooling
    Working Temperature -30~50℃
    Altitude 2000m
    Ingress Protection IP54
    Certificates IEC62619、UN38.3、IEC61000、IEC62477

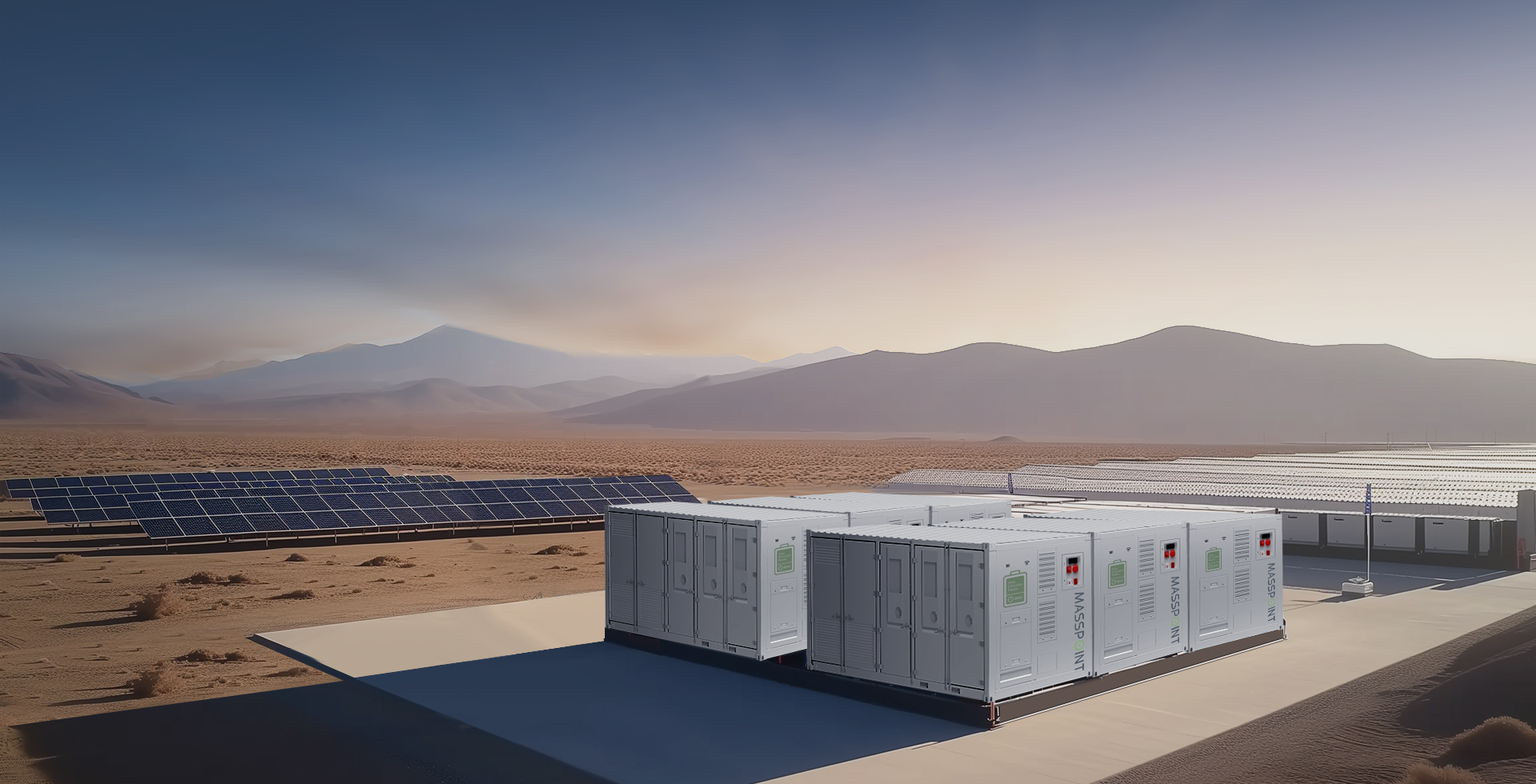

Application Scenarios

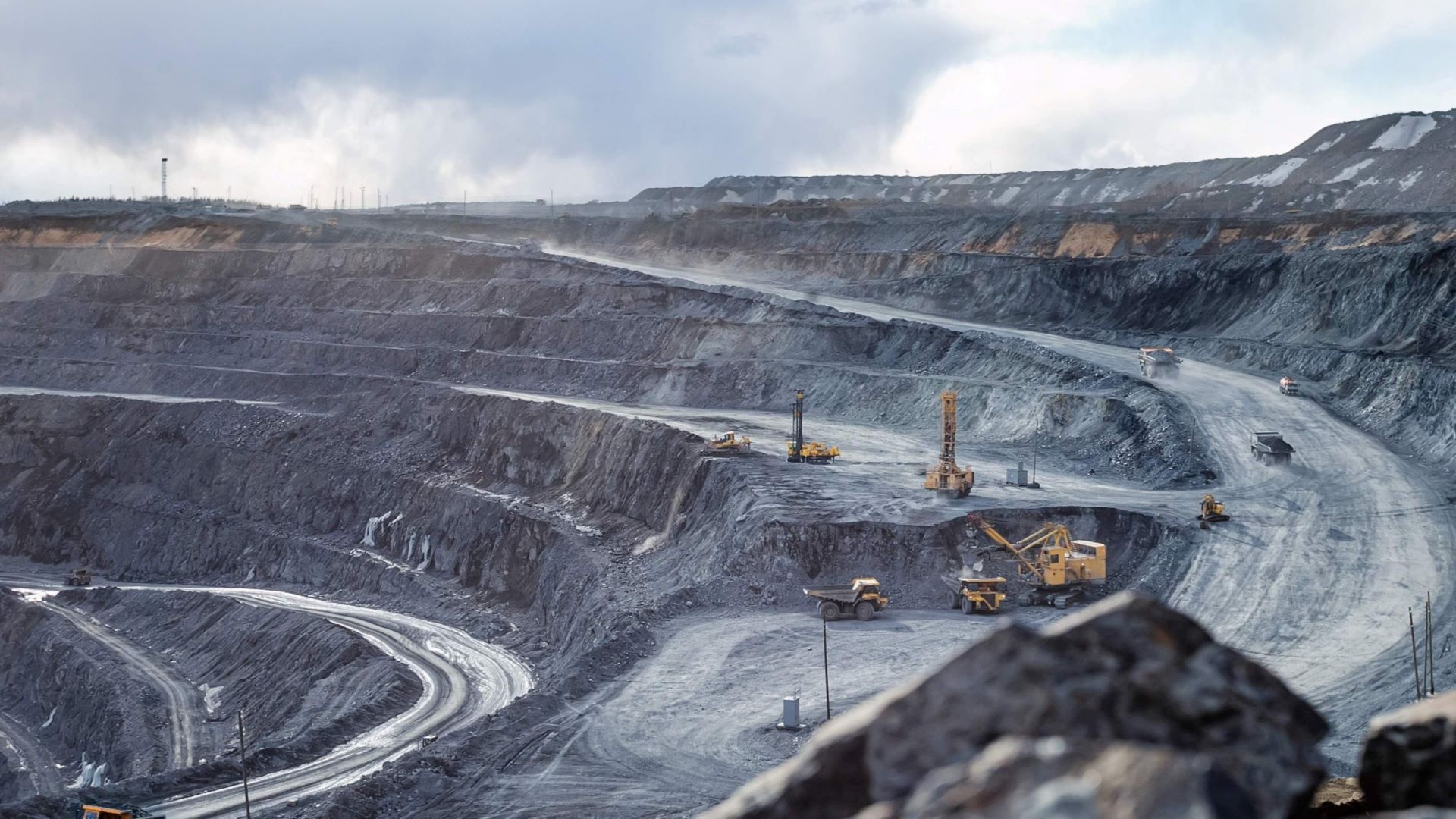

  • Mining Area
  • Island

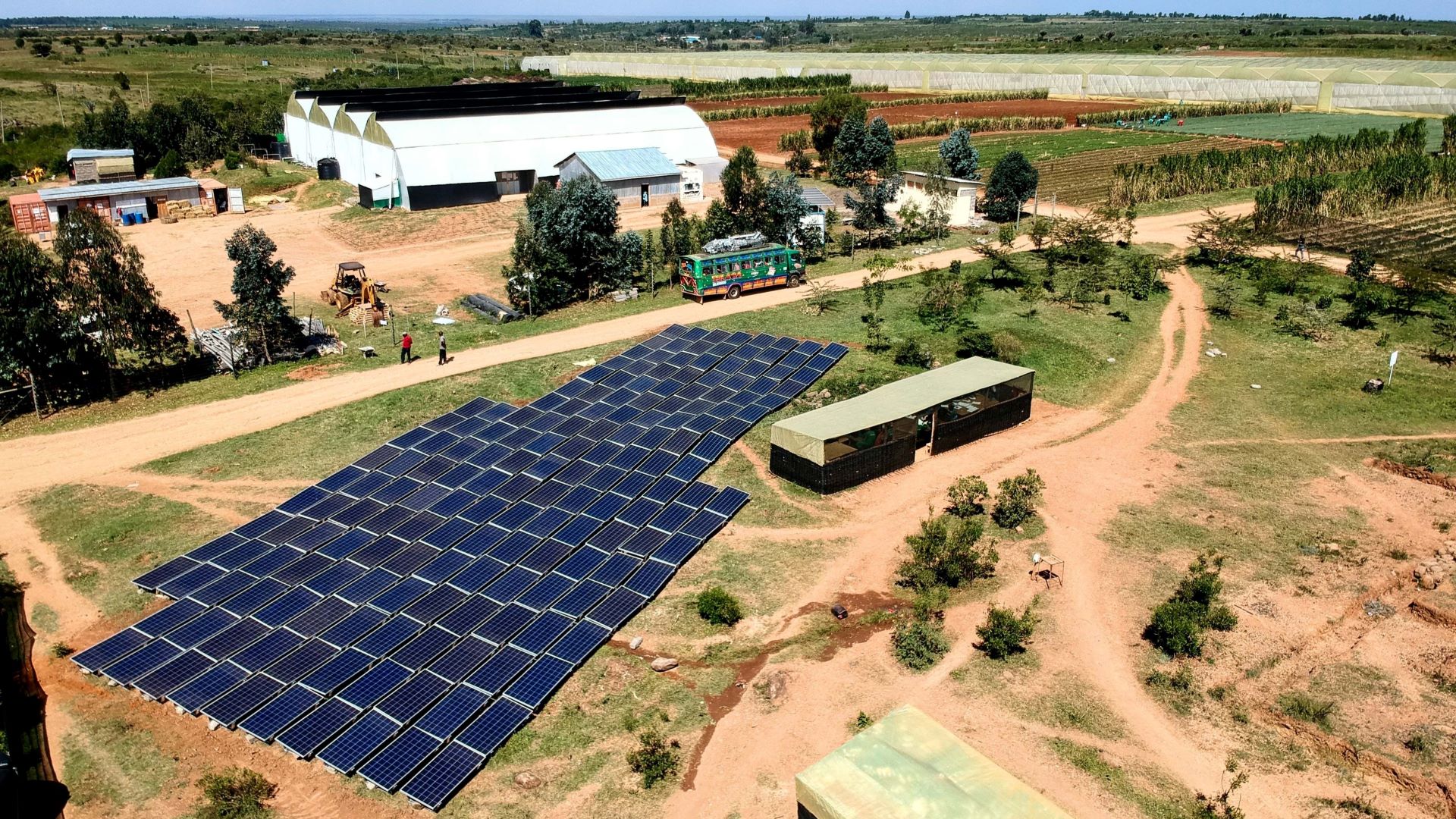

  • Farm and Pasture
Building up intelligent and green
energy systems.
